A Complete Pipeline for Quantitative Neuroscience Imaging
PanoBrain and StrataQuest together deliver what neither can alone: automated, atlas-registered brain slice scanning coupled with deep spatial phenotyping and quantitative tissue analysis. This integrated workflow takes researchers from prepared tissue sections to publication-ready spatial data with minimal manual intervention and maximum biological insight.
Why Combine PanoBrain with StrataQuest?
PanoBrain excels at what happens before analysis: automated scanning, seamless stitching, and Allen Brain Atlas registration across multiple species. Its built-in Panolyzer software handles atlas mapping and basic cell counting, but many neuroscience questions demand more.
StrataQuest picks up where PanoBrain built-in analysis ends. It brings deep learning-based segmentation, multi-marker phenotyping, spatial interaction mapping, and population-level statistics to PanoBrain high-resolution, atlas-registered datasets. The combination enables questions that neither platform addresses independently:
- Beyond counting: Classify cells by phenotype (NeuN+, GFAP+, Iba1+) and quantify their spatial distribution per brain region
- Spatial context: Map proximity relationships between cell populations. Which immune cells cluster near injection sites? How does microglial activation vary with distance from pathology?
- Cross-section analysis: Compare spatial phenotype distributions across treatment groups, time points, or anatomical levels with statistical rigor
- Multiplex quantification: Analyze co-expression patterns across fluorescence channels that PanoBrain captures but Panolyzer cannot decompose
The Workflow: Scan, Register, Analyze, Quantify
1. Automated Acquisition (PanoBrain)
PanoBrain handles the entire scanning pipeline automatically. Place prepared brain slices on the stage, and its intelligent path planning identifies tissue boundaries, executes multi-channel fluorescence acquisition (DAPI + GFP or custom configurations), and produces seamlessly stitched whole-section images in under a minute per slice. Its adaptive autofocus handles the uneven surfaces typical of thick cryosections and vibratome slices.

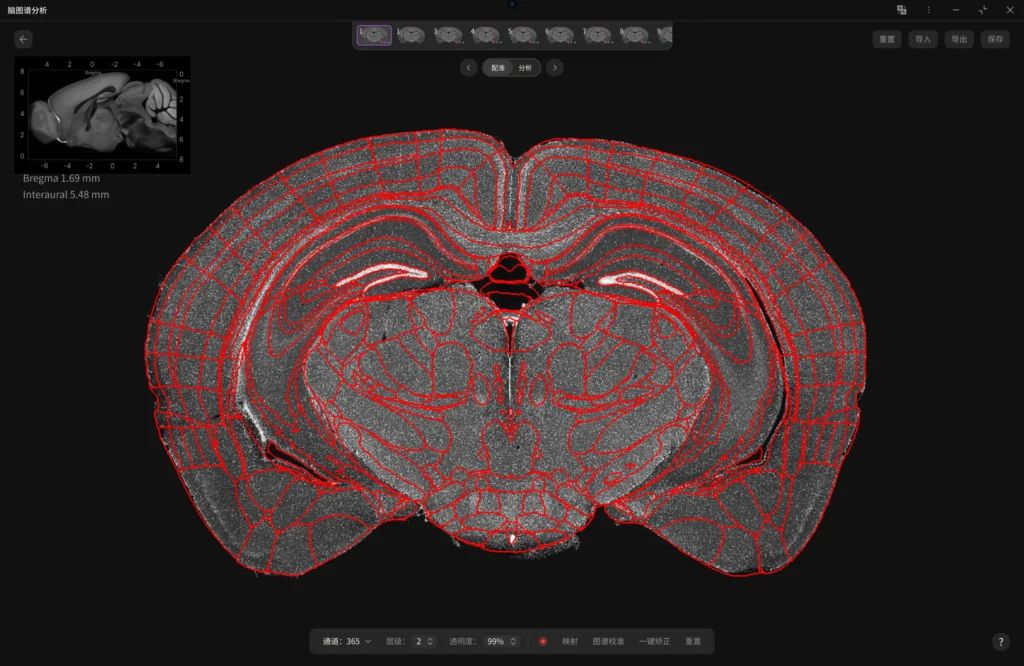

2. Atlas Registration (Panolyzer)
Panolyzer automatically registers each scanned section against the Allen Brain Atlas (or species-appropriate reference atlas for rat, macaque, or ferret), providing standardized anatomical coordinates and brain region boundaries. This atlas context travels with the image into downstream analysis, a critical advantage for region-specific quantification.
3. Deep Tissue Analysis (StrataQuest)
StrataQuest imports PanoBrain high-resolution TIFF output and applies its full analysis toolkit:
- Nuclei detection: Deep learning-based segmentation that handles the dense, overlapping nuclei common in brain tissue, superior to threshold-based methods for cortical layers and hippocampal formations
- Cell classification: Assign phenotypes based on marker intensity, morphology, and spatial context using the classifier engine or prebuilt apps
- Spatial phenotyping: Map cell-cell interactions, neighborhood composition, and distance relationships, revealing the tissue microenvironment architecture that simple cell counting misses
- Region-aware quantification: Leverage PanoBrain atlas registration to quantify per brain region, enabling direct comparison of cell populations across anatomical structures
4. Population-Level Statistics
StrataQuest scattergram visualization and dimensionality reduction tools (t-SNE, UMAP) allow researchers to explore phenotype distributions across entire cohorts. Combine PanoBrain batch scanning throughput with StrataQuest cohort-level analysis to power studies at a scale that manual workflows cannot sustain.
Research Applications
Viral Tracing and Circuit Mapping
PanoBrain scans GFP-labeled brain sections at 10X with full anatomical coverage. StrataQuest quantifies transduced cell density per brain region, classifies cell types receiving viral label, and maps projection patterns across serial sections, turning qualitative tracing into quantitative connectomics.
Neuroinflammation and Drug Efficacy
Scan treatment and control cohorts with PanoBrain batch processing. StrataQuest phenotypes microglia (Iba1+) and astrocytes (GFAP+), quantifies activation states, and maps spatial clustering relative to lesion sites, providing the spatial resolution needed to evaluate therapeutic interventions beyond bulk tissue measurements.
Quantitative Neuropathology
Atlas-registered PanoBrain datasets enable standardized, region-specific quantification of pathological features across subjects. StrataQuest measurement engines extract morphometric parameters (cell size, shape, intensity) that correlate with disease progression, supporting both exploratory research and preclinical endpoint analysis.
Technical Integration
PanoBrain outputs standard TIFF files that StrataQuest imports directly, with no format conversion or preprocessing required. Atlas coordinates and region annotations can be preserved as metadata or overlays, maintaining the spatial context established during PanoBrain registration step throughout the downstream analysis pipeline.
ScientiaLux configures both platforms for your specific experimental requirements. As the North American partner for both Meca Scientific (PanoBrain) and TissueGnostics (StrataQuest), we ensure the acquisition parameters, channel configuration, and analysis workflows align with your fluorophore strategy and biological questions.
Explore the Technology
Dive deeper into the concepts behind this workflow:
- StrataQuest Glossary — 66 terms covering detection engines, spatial analysis, measurement tools, and interactive simulations
- Imaging Glossary — Optical fundamentals, camera sensors, and acquisition parameters
- PanoBrain — Full product capabilities and technical specifications
- StrataQuest — AI-powered tissue analysis platform details
Schedule a conversation with ScientiaLux to discuss how PanoBrain + StrataQuest can power your neuroscience imaging workflows.
